NFPA Certified Fabrics

NFPA 1971 Certified Aluminized Fabrics

Products

DualMirror® II & Z-Flex® II Aluminized

DualMirror II 1098 40" PBI/Aramid Knit NFPA
DualMirror II 1088 40" Aramid Knit NFPA

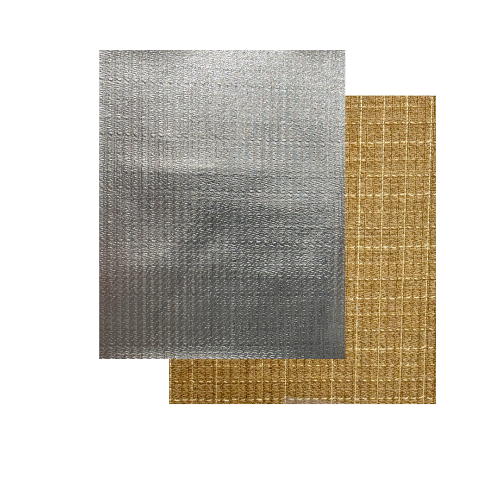

Z-Flex II P-202 58" PBI/Aramid MK NFPA

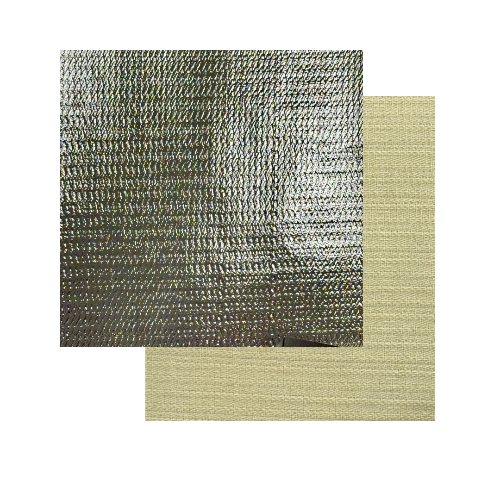

Z-Flex II K-252 58" Aramid MK NFPA

DualMirror®II and Z-Flex®II multilayer aluminized fabrics are specifically engineered to provide durability, comfort, and superior protection from radiant energy in proximity firefighting applications, including aircraft rescue firefighting (ARFF). By reflecting up to 95% of radiant energy, Z-Flex®II fabrics allow close flame proximity while reducing the rate of heat absorption that can lead to thermal fatigue.

These NFPA 1971 certified fabrics deliver the best available Radiant PPE protection and are now available from leading proximity suit manufacturers including:

The Anatomy of Newtex Aluminized Fabrics

  • Exterior Radiant Layer: DualMirror® II / Z-Flex® II Aluminized
    High purity aluminum particles act as a radiant heat barrier, reflecting up to 95% of high temperature infrared radiant energy from heat and flames.

  • High-Temperature Film: Moisture & Conductive Heat Transfer barrier
    A high-temperature film is used for aluminum deposition and significantly reduces conductive heat transfer through the fabric system and provides a moisture/steam barrier.

  • Interior Radiant Shield: DualMirror® II / Z-Flex® II Aluminized
    A secondary layer of pure aluminum particles increases the effectiveness of the outer heat shield by providing additional reflectivity.

  • Proprietary Adhesive: Advanced adhesive chemistry
    An advanced thermo-set polymer system delivers superior thermal performance and stronger adhesion over legacy rubber-based adhesives with safe and ecologically friendly compounds.

  • Performance Weaves & Knits: 3D Mock-Knit™ by Newtex & Knits from US leading Knitters
    Our 1098 PBI/Aramid and 1088 Aramid knits have been the leading NFPA options for ARFF and military proximity apparel for decades. Newtex's MockKnit weaves featured in our P-202 PBI/Aramid and K-252 Aramid styles deliver the comfort of a knit and superior strength for demanding fire fighting apparel.

Common Uses

  • Military & Homeland Security

  • Personal Protective Apparel

  • Firefighting
